ULTRAGUARD UNITS
External filtration units, retrofit to any vehicle with a cabin.
Purecab has developed the UGM and Ultraguard External Filter Units that can be fitted to any vehicle with a cabin, to provide the operator with clean air while spraying or to protect from dust.
Previously only those operators in air-conditioned tractors could replace the dust filter with a detoxifying tractor cab chemical filter and enjoy clean air, now anyone using a vehicle with a cab has the same opportunity.
Protect Yourself While You Work
Purecab’s range of external filtration units are designed to protect you from harmful chemicals and dust. Superior chemical adsorption and dust capture means your health is guarded against future illness. Easy to install to most cabins, and they contain reusable filters.
Retrofit Anything
Retrofit any vehicle, tractor with a cabin to
improve your cabin air health. Easy and
flexible cabin fitment system to ensure any
Ultraguard is right for you:
• Tractors
• Excavators
• Loaders
• Caravans
• ATVs
• Utes and 4WDs
5-Minute Filter Service
Easily replace your filter with a new one,
or contact us for replacement options.
Improve Your Working Air Safety
Ultraguard units are designed to fit to an existing cabin to provide additional air safety. All units can be fitted on almost any position on or near your cabin, then plumbed and wired easily into the cabin. All materials are supplied.
With Purecab’s activated carbon filters powered by ADXORB® Activated Carbon, or reusable dust filters, you can be protected against harmful chemicals, gases and fine dust. Purecab activated carbon filters exceed industry standards and are up to 11X safer than others.
Ultraguard+ unit with
Activated Carbon filter
Activated Carbon filter
Fresh air delivered at
up to 100 litres/minute

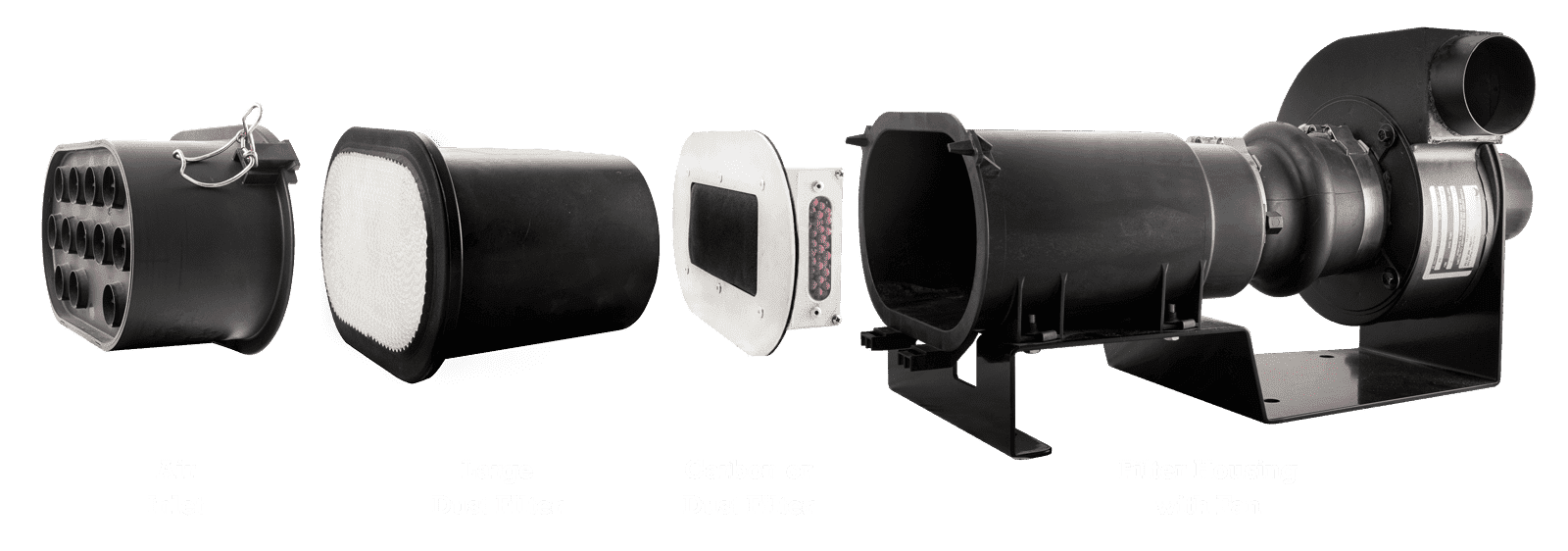

Ultraguard Quality

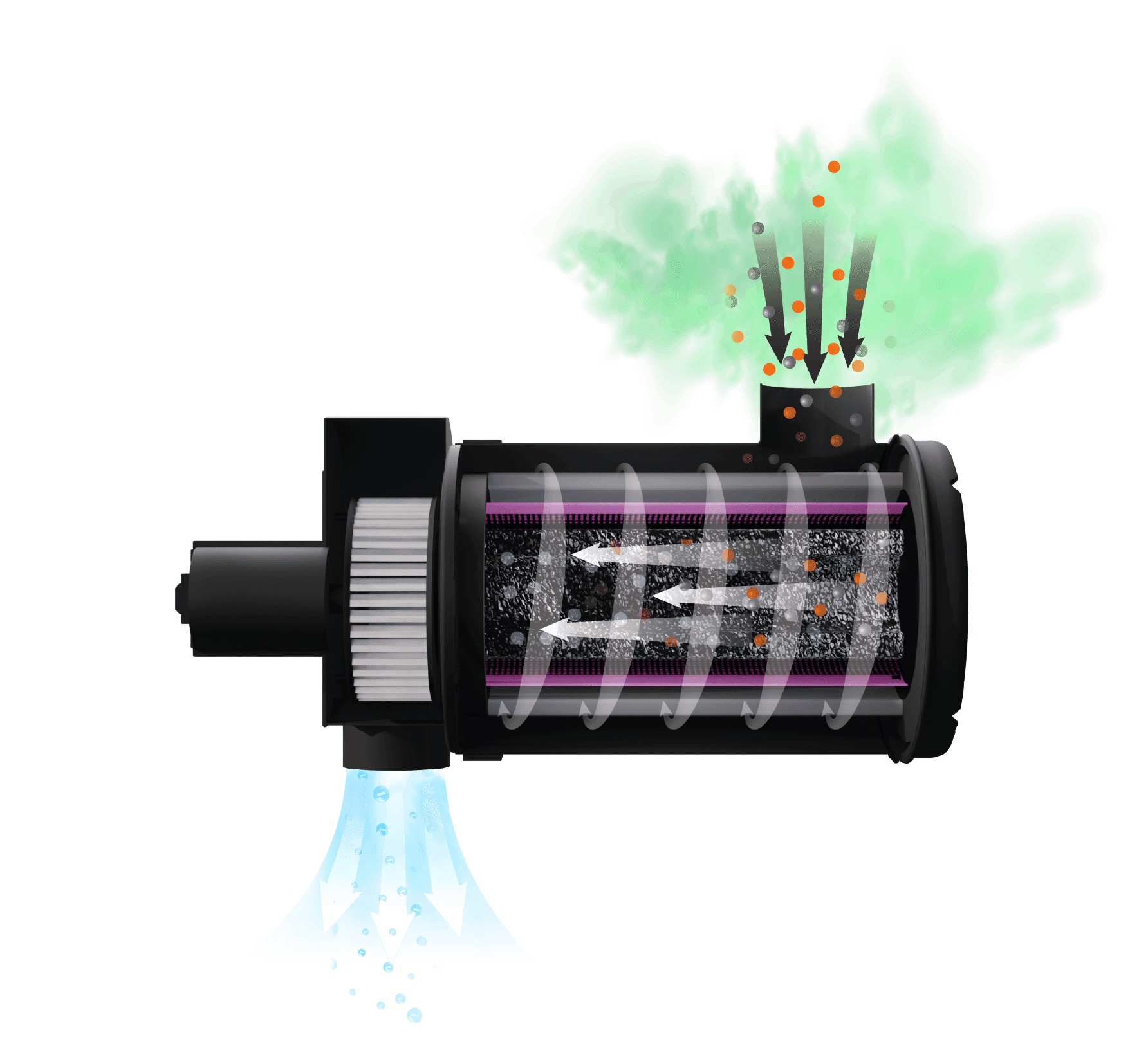

The most popular Ultraguard+ external unit is made with a strong steel powdercoated housing and quality Aussie parts, designed to last outdoors for many years. Contains a premium blower and sealed sections to ensure efficient airflow. Air passes through the dust pad layers and the ADXORB® Activated Carbon bed effectively adsorbing chemicals and contaminants. Clean, filtered air then passes through the plumbing and into your cabin. A safe work space for you and your operators!
Ultraguard UGM9 unit with dust and carbon filter sections

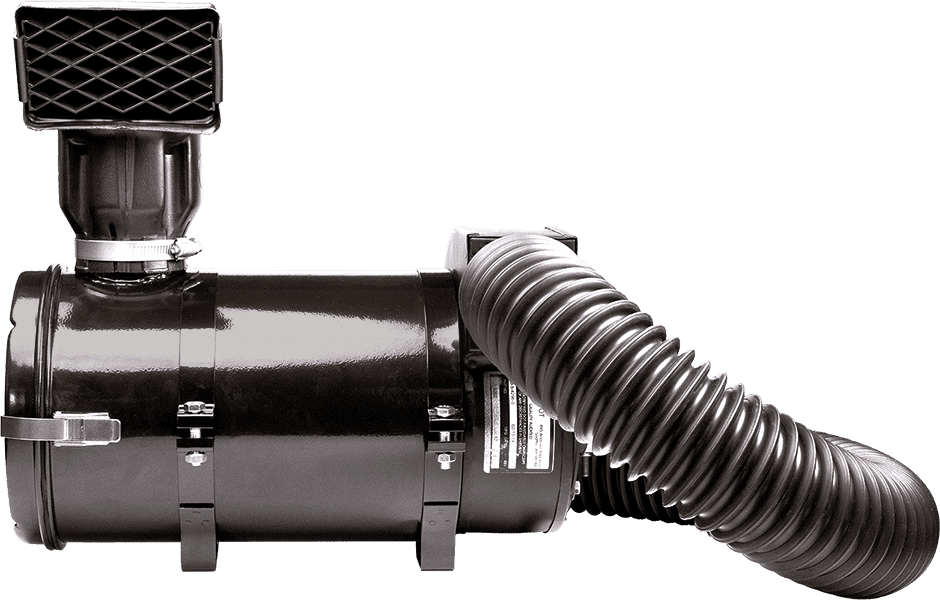

Ultraguard+
Most popular unit, versatile and suits all vehicles
DUST: 70–80 Litres/Min
ADXORB® Activated Carbon: 45–50 Litres/Min
Replacement Purecab filter is part number P277

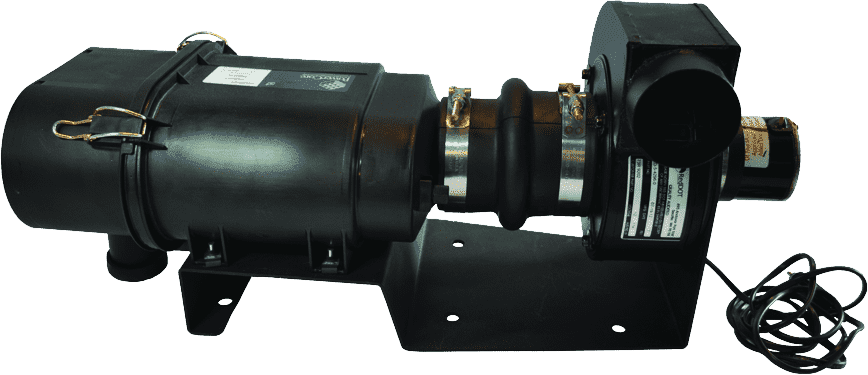

UGM 9
Small and Compact – built for ATVs and
small-medium cabins
DUST: 25–30 Litres/Min
ADXORB® Activated Carbon: 75–90 Litres/Min
Replacement Purecab filter is part number P597

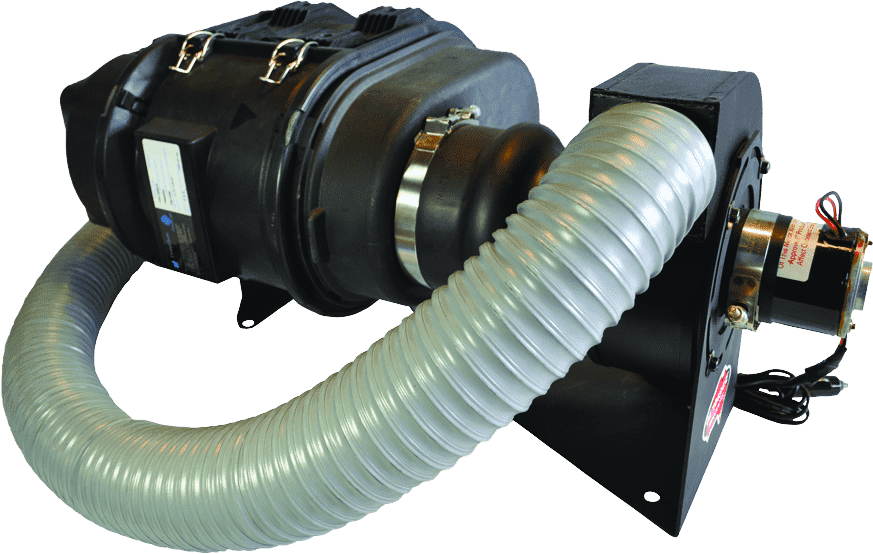

UGM 10
Similar air-flow to UGM 12, but with a smaller footprint
DUST: 80–95 Litres/Min
ADXORB® Activated Carbon: 35–45 Litres/Min
Replacement Purecab filter is part number P601

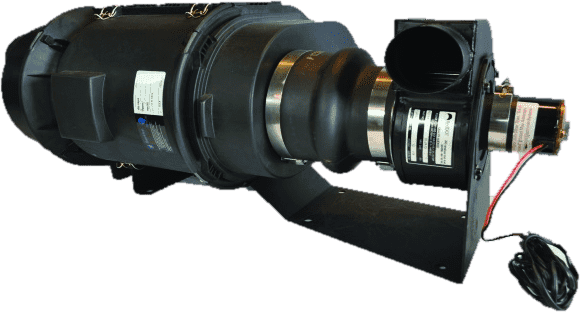

UGM 12
Larger cabins and high volumes of contaminates
DUST: 85–100 Litres/Min
ADXORB® Activated Carbon: 40–50 Litres/Min
Replacement Purecab filter is part number P600
Panel or Roof Mount
For added security and protection, our filter unit can be permanently mounted to your vehicle's roof, tray or a suitable panel. This ensures reliable filtration even in harsh conditions.
Window
Fitment
Our window fitment kits offer a convenient and temporary solution for filtering out contaminants in vehicles without permanent modifications. These kits are easy to install and can be removed when not in use.
Flexible Mounting Options
Flexible outlet hosing is provided with every selected mounting kit, ensuring maximum versatility and compatibility with any cabin – without significant modification.
24 Volt or
12 Volt
All units are available in either 12 volt or 24 volt configuration.
